GENERAL OPERATION

a) Baling

There are two pairs of sensors placed in the hopper of the baler for controlling the feeding operation located at the

bottom. When the sensors of the bottom are activated the baler starts the compaction cycle, when those sensors are

not activated the baler is in stand-by waiting for more material.

The cycle starts when the ram moves forward introducing (compacting) the material inside the chamber and going

back to the initial position. For making a bale the machine needs various cycles, depending on the desired bale

density.

GENERAL FEATURES

 Low Energy Consumption

 Safe and easy usage

 Long life Low Noise (60 dB)

 Reliable Constriction

 Wire Driving

 Touch Screen 7” PLC Control

 Infrared Actuators 3 Set

 Continuous Feed Baler

 Automatic Wire Tie

 Machine comes with bale counter and info feed to PLC how much bale has been created

 Live pressure shows on the PLC

 Colour coding system for different materials in the operation system

 Pre define pressure settings system for different materials

 Hour counter, overloading, emergency stop, door open warning system are available

 A set of maintenance tools will be provided for the machine

 Automation package in feed management system

 Body shear blade/adjustable cutting knives in replaceable

 Hopper view door

 Free-standing operator centre

 Automation switch-off when filling is not in process

 Compaction chamber floor Replaceable HARDOX plates.

 Machine automation troubleshoot is possible through laptop over internet.

 Special electronic security device for inspection and access door. ( Magnetic coded two way device )

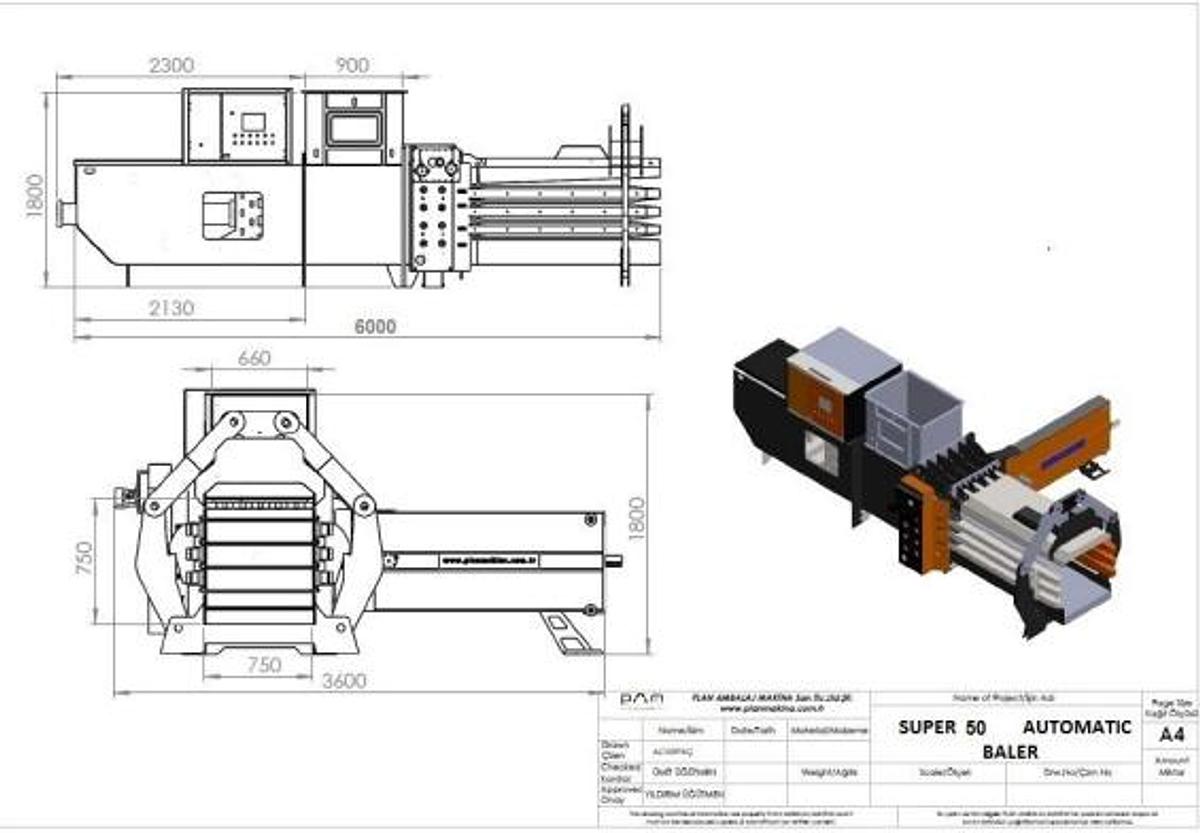

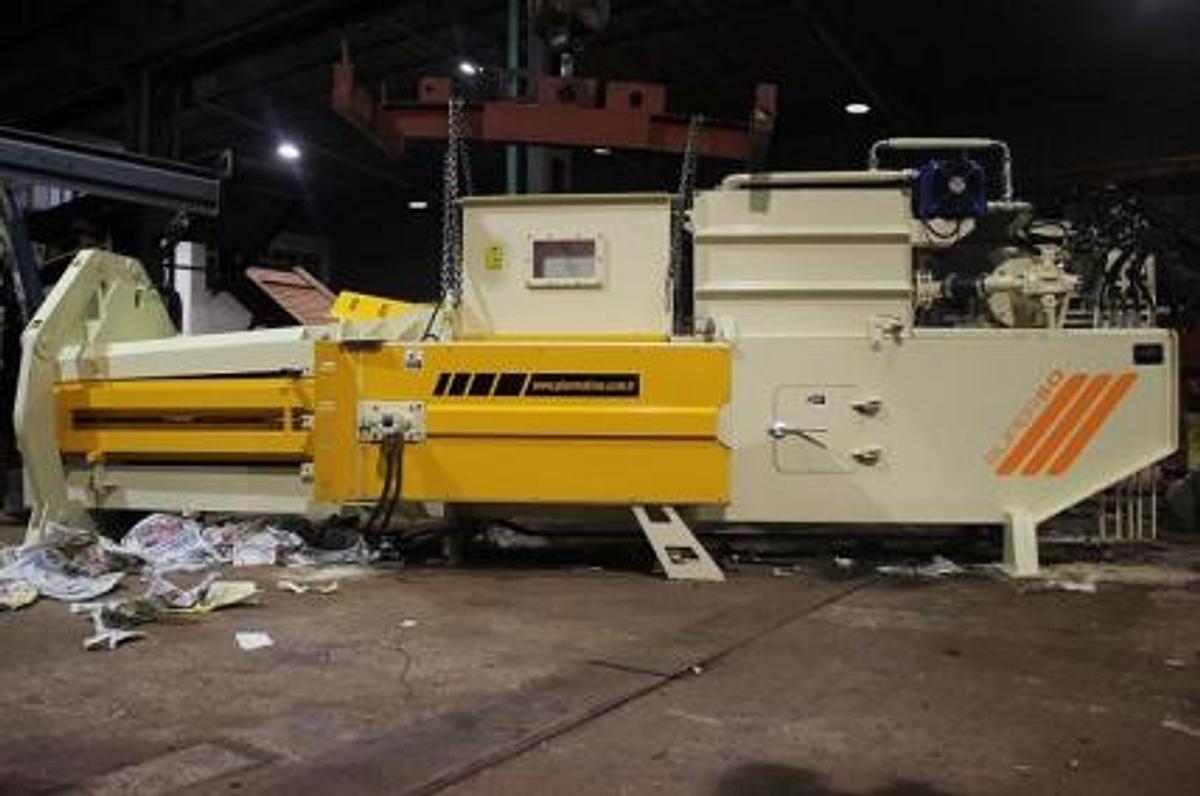

2026 PAM SUPER 50
